Split Clipper Oil Seal
Category:
Oil Seal
- Product Description
-
- Commodity name: Split Clipper Oil Seal
- Commodity ID: LANHE-00100120
Split oi seal Clipper oil seal Split clipper oil seal Split rotary shaft seals

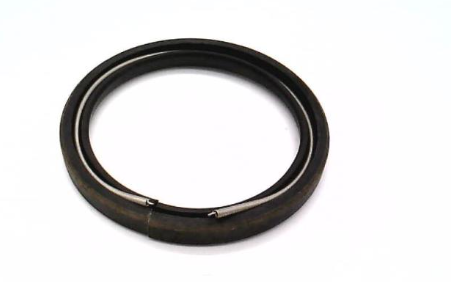

Split Clipper Oil Seal
Split Clipper? rotary shaft seals have the same superior characteristics as solid general purpose Clipper oil seals, but are factory-split for easy installation.
Replace old seals without disassembling components—these seals come split for easy installation. Also known as clipper seals, they retain oil on rotating shafts in motors, pumps, bearings, and gearboxes. A spring secures the lip to prevent leaks; fasten the hook and eye closure to secure. Press-fit seals into the housing bore; they fit tight for installation without a cover plate.
Technical Specifications：
Minimum Operating Temperature: -65 °F, -54 °C
Maximum Operating Temperature: 400 °F, 204 °C
Maximum Surface Speed: 1000 to 2000 ft/min, 5.1 to 10.2 m/sec
Maximum Operating Pressure: 0 psi
Thermal Application Type: Varies (depending on material)
Seal Type: Composite Rubber/aramid Fiber Heel
Shaft Seal Material: Rubber
Safety WarningProduct Description:
Split Clipper? Oil Seals have the same superior characteristics as solid general purpose Clipper Oil Seals, but are factory-split at one place in the circumference. This permits installation over the side of a shaft, rather than over the end, and often can save dismantling the equipment in order to replace the existing rotary shaft seal.Solid Clipper Oil Seals should be used whenever practical to provide maximum bearing protection in rotating shaft applications. However, installing a solid seal in a failed application can be costly and time consuming. In such cases, Split Clipper Oil Seals can be used to minimize unscheduled downtime, specifically where equipment cannot be uncoupled. These seals will provide long and efficient service until major or scheduled machine overhaul permits convenient installation of a regular non-split seal.
Split Clipper Oil Seals are available in Series R, RPD and RUP profiles, depending upon shaft diameter. RUP and RPD profiles are general purpose spring loaded with a single lip and are widely used as replacement seals because they provide superior bearing protection and embody a unique principle of design. The tough, dense outer case and a soft, flexible lip are concentrically molded as a single unit. The seal's nonmetallic outer case forms a leak-free, press fit in the housing, conforming to minor surface irregularities.
Split Clipper rotary shaft oil seals provide excellent retention of grease and light oil splash. Some weepage in oil
splash applications may occur.Advantages of the Split Clipper Oil Seal :
? Saves costly down time
? Speedy repairs
? Easy installation – no special tools required
? No backup plates required
? Corrosion-resistant case reduces bore surface seizing
? Stainless steel coil garter spring helps keep split junction tight and compensates for minor shaft irregularities
? Flat lip contact design compensates for minor split-end misalignmentStandard Lip Materials:
NBR: Temp -20F / +250F
FKM: Temp -40F / +400F;Shaft Surface Speed: Up to 2,000 fpm (10.2 m/s)
Size Range: 0.500 to 65.000 inchMaximum Pressure: 0 psi.
Applications:
Split Clipper Oil Seals are designed for applications such as motors, gearboxes, pumps, fans, industrial rolls, and custom equipment, where the same is not readily able to be disassembled due to time constraints.
