NBR O-rings nitrile
Category:
O-Rings/Seal Ring
- Product Description
-
- Commodity name: NBR O-rings nitrile
- Commodity ID: PC-0039
NBR Nitrile rubber O-rings Buna-N O-Rings (NBR Nitrile) NBR O-Rings NBR nitrile o ring Nitrile Rubber O-Rings Metric Nitrile (NBR) O-Rings
NBR Nitrile rubber O-rings are widely used in the sealing industry because of their low price, good chemical resistance and excellent oil resistance.
Nitrile rubber is a light brown elastomer with a molecular weight of about 700,000. Due to the strong polar CN group, it has excellent stability to aliphatic oils and gasoline.And according to the ACN content is divided into:
1.Very high nitrile rubber: ACN content of more than 43%
2.High nitrile rubber: ACN content 36%-42%
3.Medium and high nitrile rubber: ACN content of 31%-35%
4.Medium nitrile rubber: ACN content 25%-30%
5.Low nitrile rubber: ACN content less than 24%■.Properties of NBR Nitrile rubber O-rings:
Tensile strength:16Mpa
Elongation at break %: 300%max
Density:1.2g/cm3

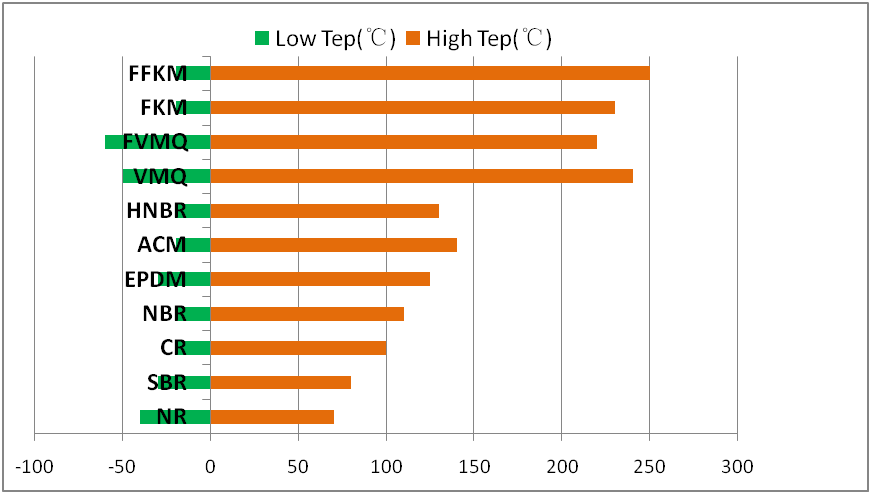

■.NBR Nitrile rubber O-rings Temperature Range:
Standard Low Temperature:-20℃(-4℉)
Standard High Temperature: -100℃(212℉)
※The temperature range is the reference value of the typical compounds, the value is different according to the material formulation,■.NBR Nitrile rubber O-rings Hardness range:50～ 90 Shore A (70 Shore A is the most common)
■.NBR Nitrile rubber O-rings Cure system:1. Sulfur-Cured:
sulfur curing compounds have good low temperature properties, but they are easier to harden at high temperatures.Standard NBR seals are usually cured in this way
2. Peroxide Cured:
Peroxide-cured nitrile O-rings have better heat resistance and lower compression sets, but are more expensive and more difficult to process.■. NBR Nitrile rubber O-rings dimensions：
CODE1: CS--Cross Section
CODE2: ID--Inside Diameter
CODE3: OD--Outside Diameter OD=ID+CS*2 Length = (ID + CS) * π
■. Size chart for the NBR Nitrile rubber O-rings implemented by 91视频H污污 seals:
1. ISO3601 Metric O-Rings
2. JIS B 2401 Metric O-Rings
3. BS 1806 Metric O-Rings
4. AS-568 O-Rings
5. Parker 5-XXX Series O-Rings
6. Parker 2-XXX Series O-Rings
7. ISO6149 Metric O-Rings
8. DIN 371 Metric O-Rings
9. NF-T 47-5001 Metric O-Ring
10. BS 4518 Metric O-Ring
11. SMS 1586 Metric O-Ring
12. GB/T 3452.2-2018
※For more information on NBR rubber o-ring product please contact 91视频H污污 seals
